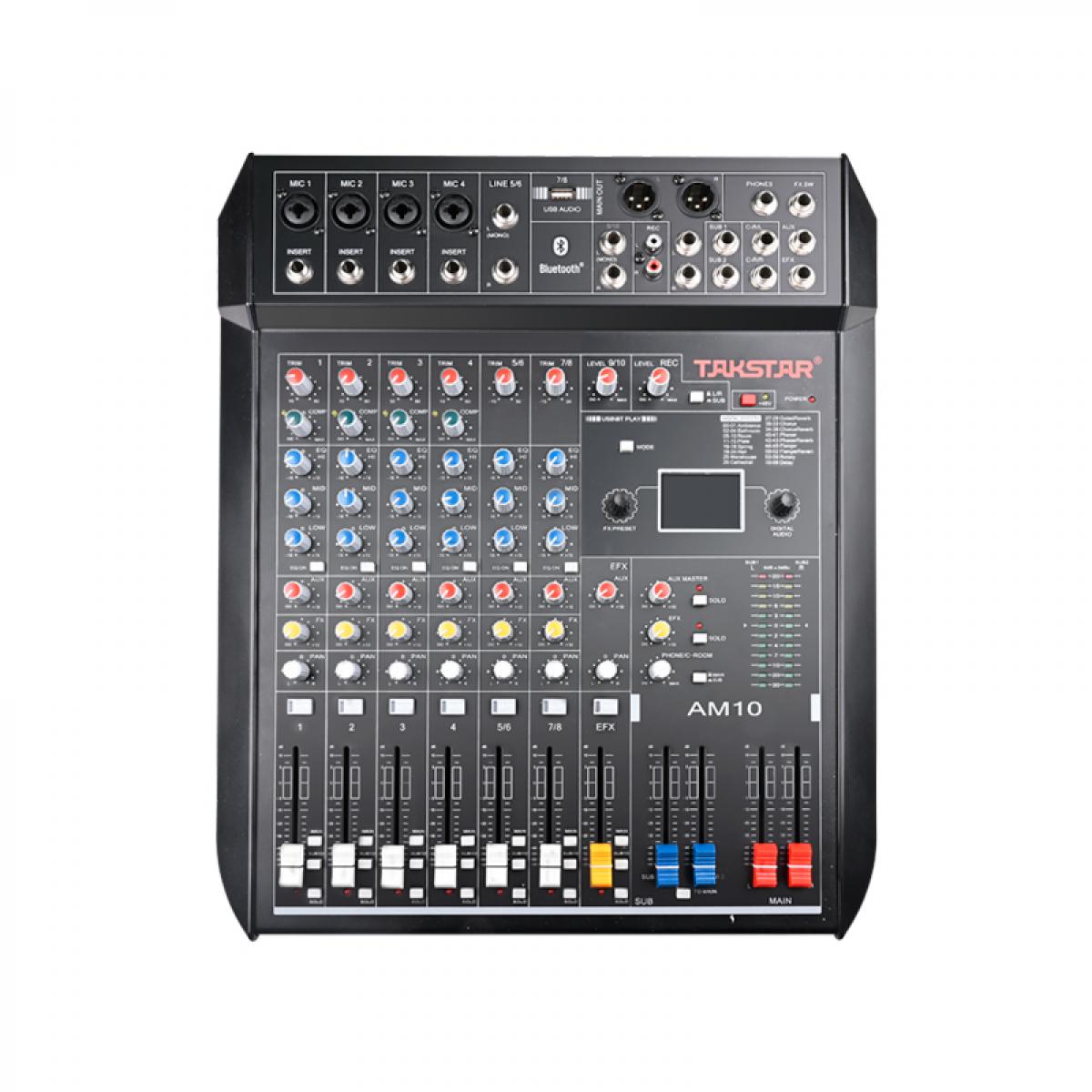

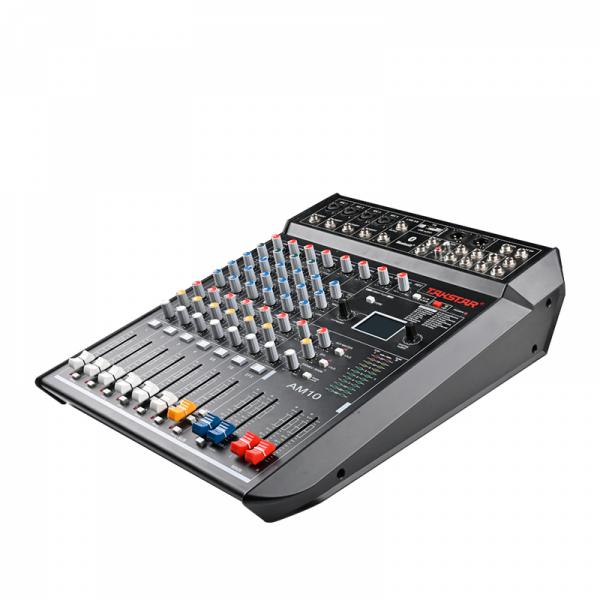

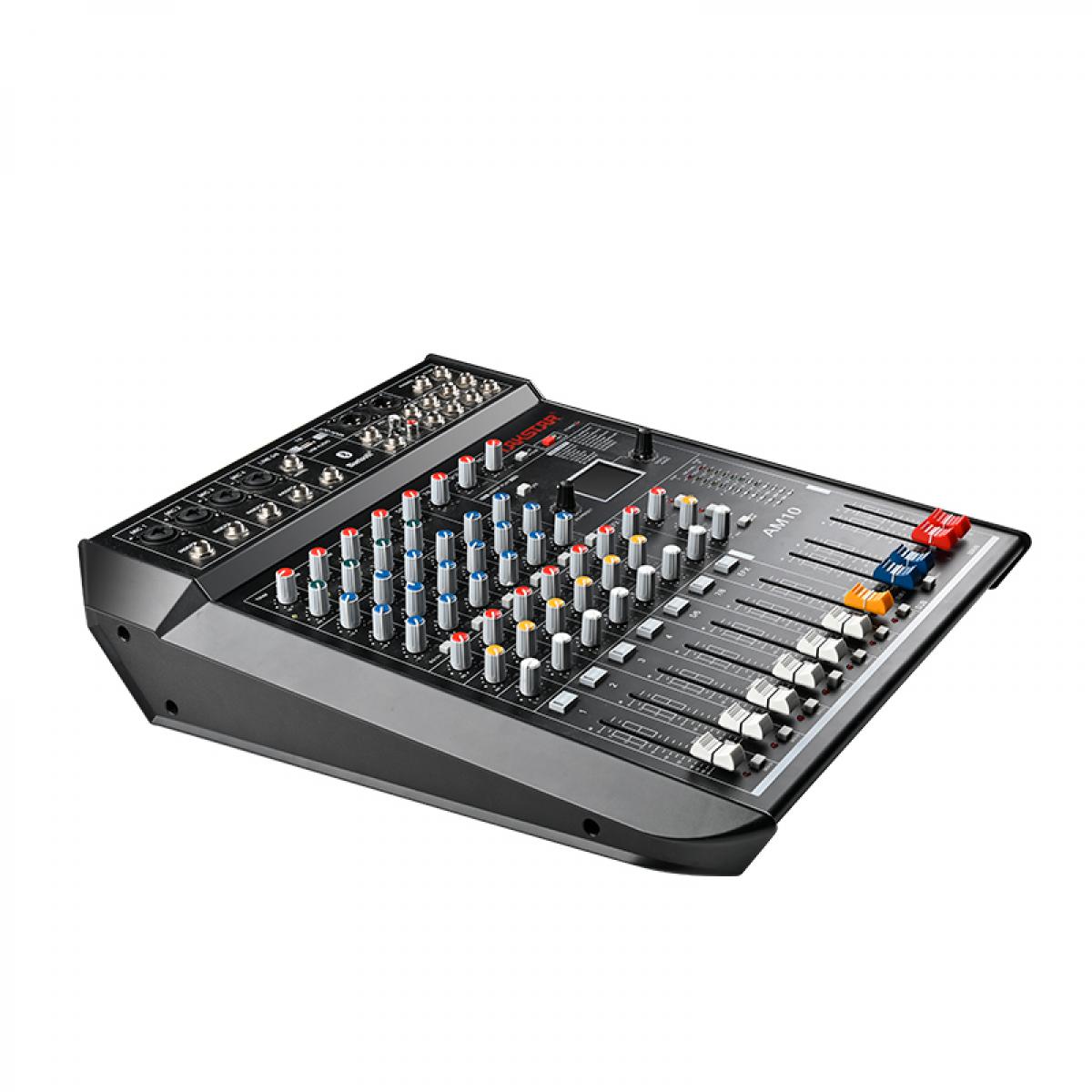

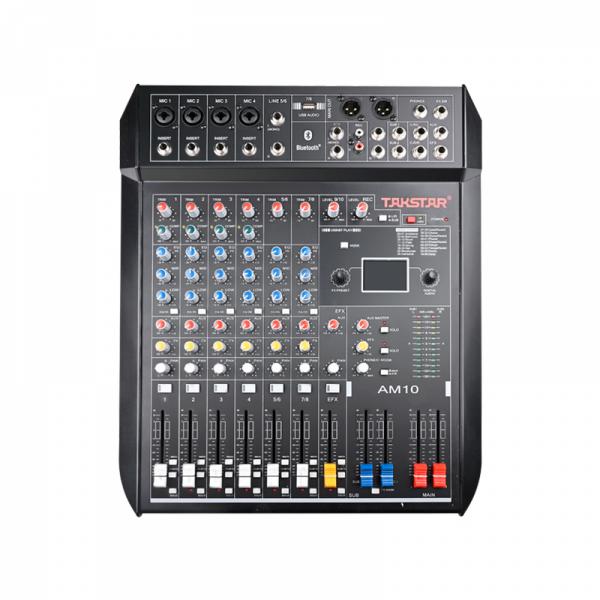

TAKSTAR AM-10 AUDIO MIXER

Үлдэгдэл: 0
Хадгал Харьцуул Facebook Share

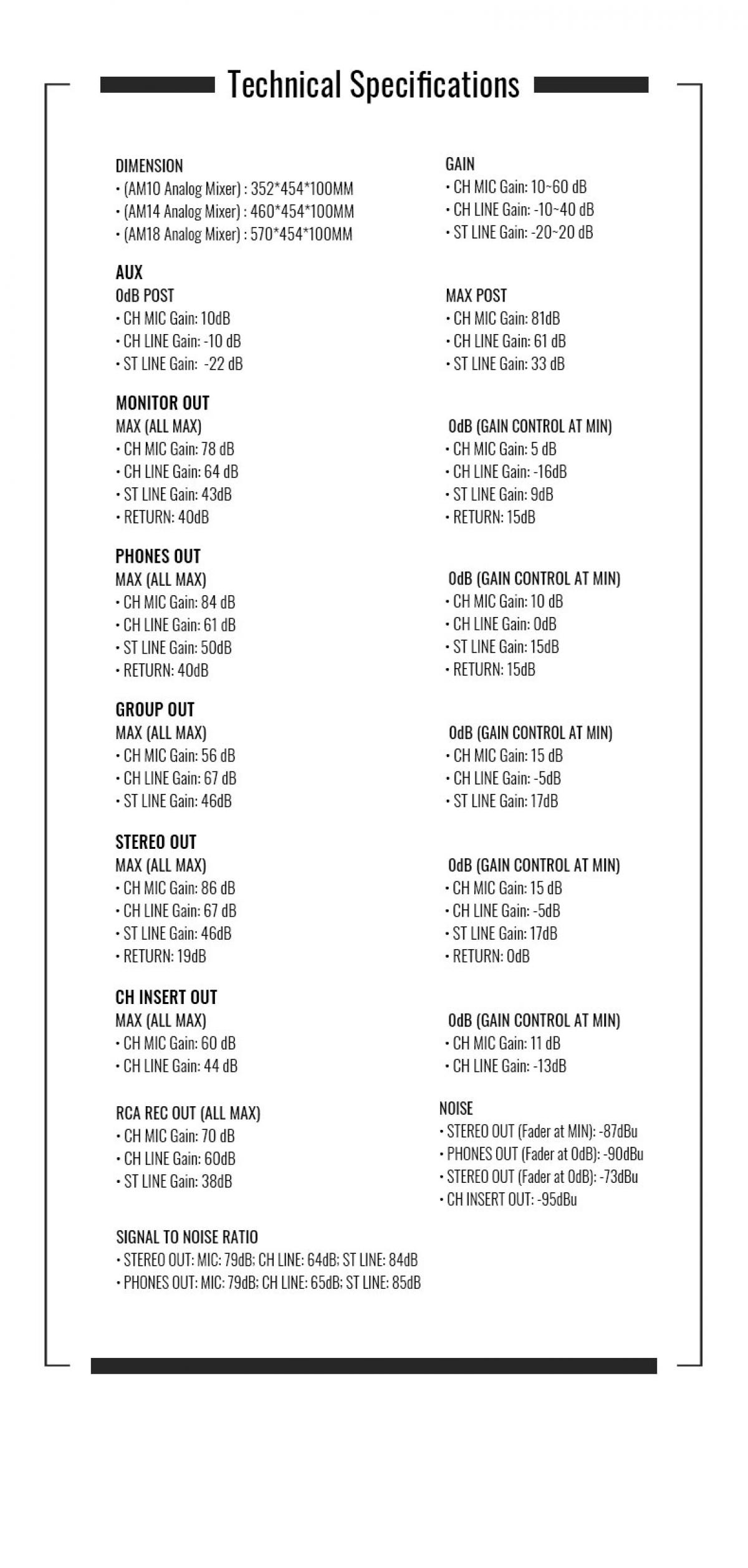

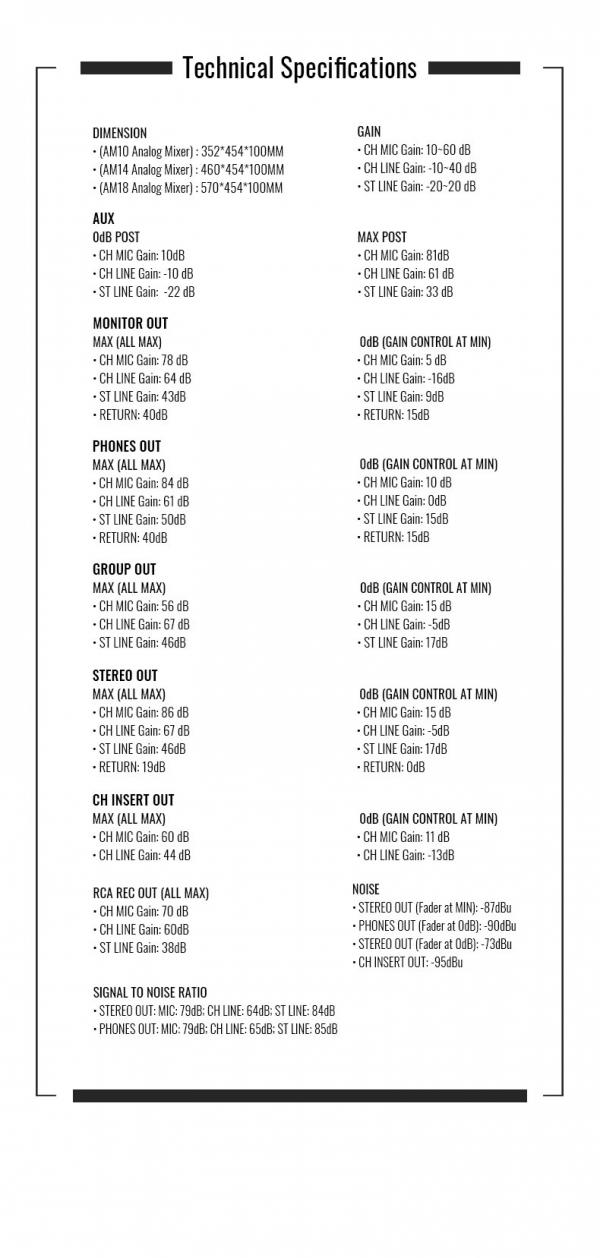

Gain
  • CH MIC Gain: 10~60 dB
  • CH LINE Gain: -10~40 dB
  • ST LINE Gain: -20~20 dB
AUX POST:
  • CH MIC Gain: 10dB
  • CH LINE Gain: -10 dB
  • ST LINE Gain: -22 dB
MAX POST
  • CH MIC Gain: 81dB
  • CH LINE Gain: 61 dB • ST LINE Gain: 33 dB
MONITOR OUT MAX(ALL MAX)
  • CH MIC Gain: 78 dB
  • CH LINE Gain: 64 dB
  • ST LINE Gain: 43dB
  • RETURN: 40dB
(GAIN CONTROL AT MIN)
  • CH MIC Gain: 5 dB
  • CH LINE Gain: -16dB
  • ST LINE Gain: 9dB • RETURN: 15dB
PHONES OUT: MAX(ALL MAX)
  • CH MIC Gain: 84 dB
  • CH LINE Gain: 61 dB
  • ST LINE Gain: 50dB
  • RETURN: 40dB
(GAIN CONTROL AT MIN)
  • CH MIC Gain: 10 dB
  • CH LINE Gain: 0dB
  • ST LINE Gain: 15dB
  • RETURN: 15dB
GROUP OUT MAX(ALL MAX)
  • CH MIC Gain: 56 dB
  • CH LINE Gain: 67 dB
  • ST LINE Gain: 46dB
(GAIN CONTROL AT MIN)
  • CH MIC Gain: 15 dB
  • CH LINE Gain: -5dB
  • ST LINE Gain: 17dB
STEREO OUT MAX(ALL MAX)
  • CH MIC Gain: 86 dB
  • CH LINE Gain: 67 dB
  • ST LINE Gain: 46dB
  • RETURN: 19dB
(GAIN CONTROL AT MIN)
  • CH MIC Gain: 15 dB
  • CH LINE Gain: -5dB
  • ST LINE Gain: 17dB
  • RETURN: 0dB
CH INSERT OUT MAX(ALL MAX)
  • CH MIC Gain: 60 dB
  • CH LINE Gain: 44 dB
(GAIN CONTROL AT MIN)
  • CH MIC Gain: 11 dB
  • CH LINE Gain: -13dB
REC OUT “MAX(ALL MAX)”
  • CH MIC Gain: 70 dB
  • CH LINE Gain: 60dB
  • ST LINE Gain: 38dB
Noise
  • STEREO OUT: -87dBu
  • PHONES OUT (fader at minimal): -90dBu
  • MAIN OUT (fader at 0 dB): -73dBu
  • CH INSERT OUT: -95dBu
Signal to Noise Ratio
  • MAIN OUT: MIC: 79 dB MONO LINE: 64 dB STEREO LINE: 84 dB
  • HEADPHONE OUT: MIC: 79 dB MONO LINE: 65 dB STEREO LINE: 85 dB

КОД: 000248

900,000₮
