Микрофон

TAKSTAR UC-4R Wireless Microphone

Үлдэгдэл: 0
Хадгал Харьцуул Facebook Share
  1. 4ш утасгүй микрофон хүлээн авагч-400000

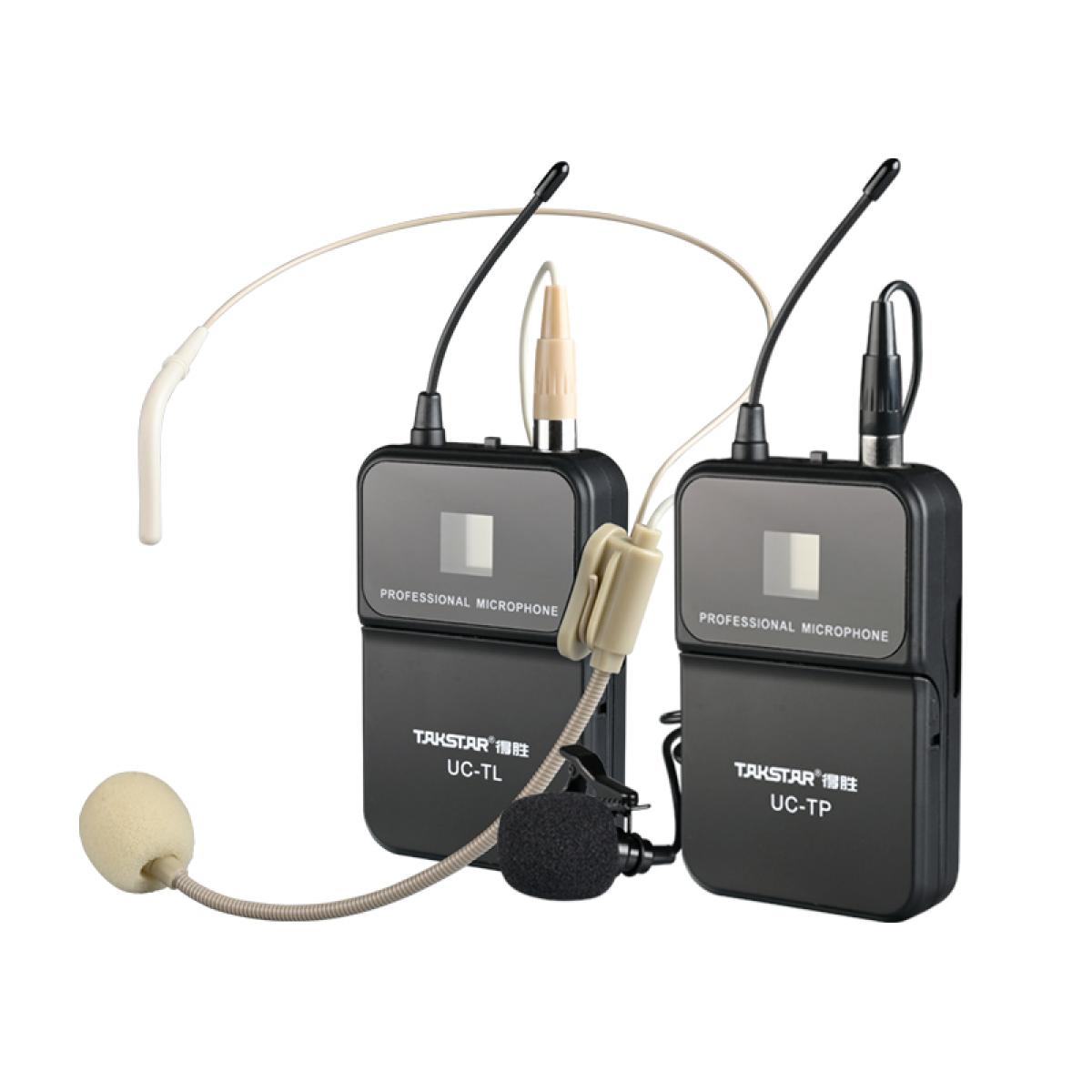

  2. Утасгүй толгойны болон барьдаг мик нь-1ш нь 120000

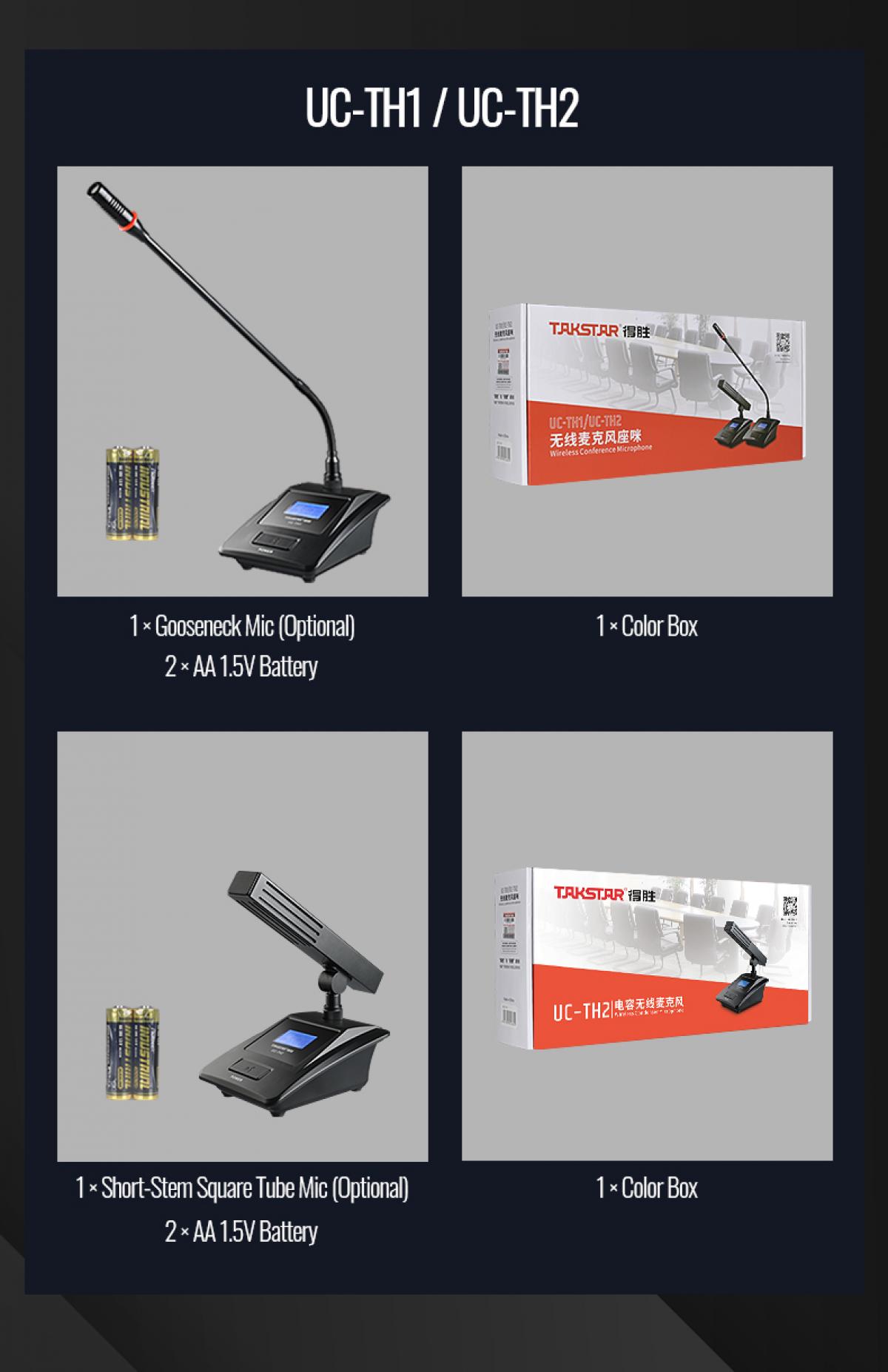

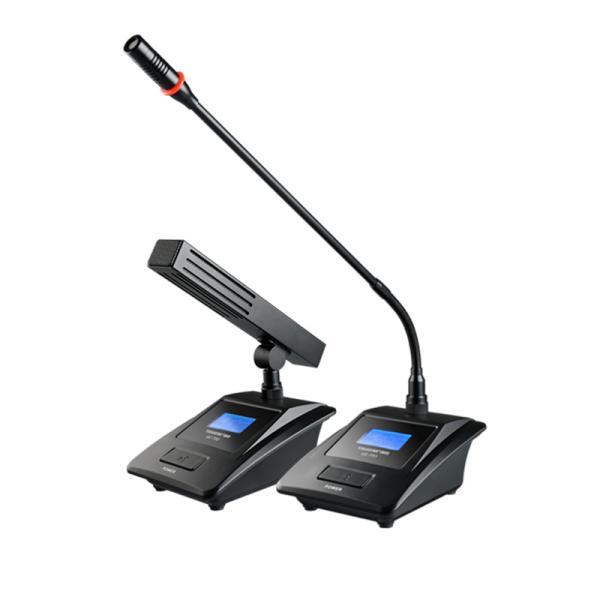

  3. Ширээний хурлын мик нь 2 янз 1ш нь 190000, 160000

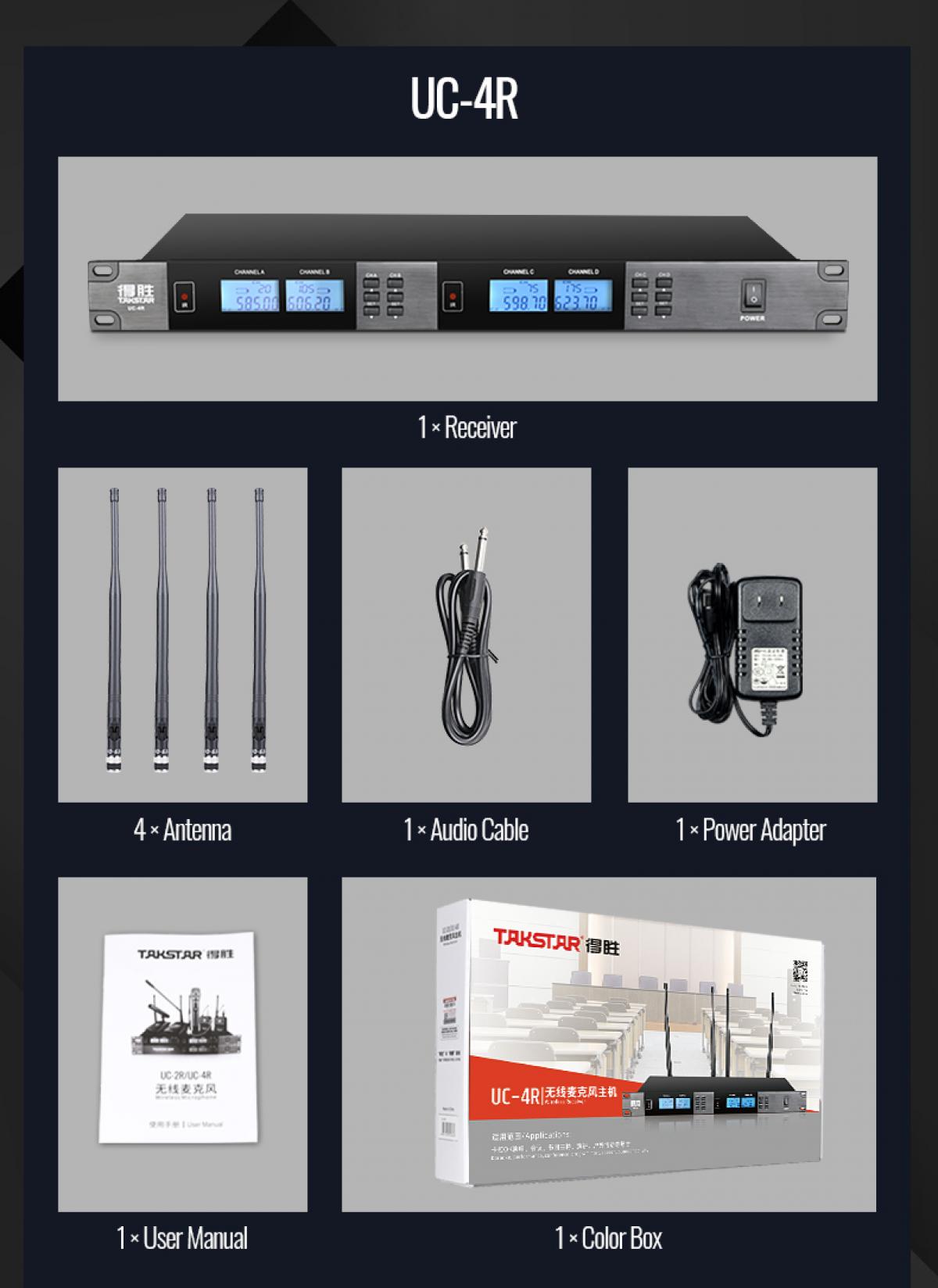

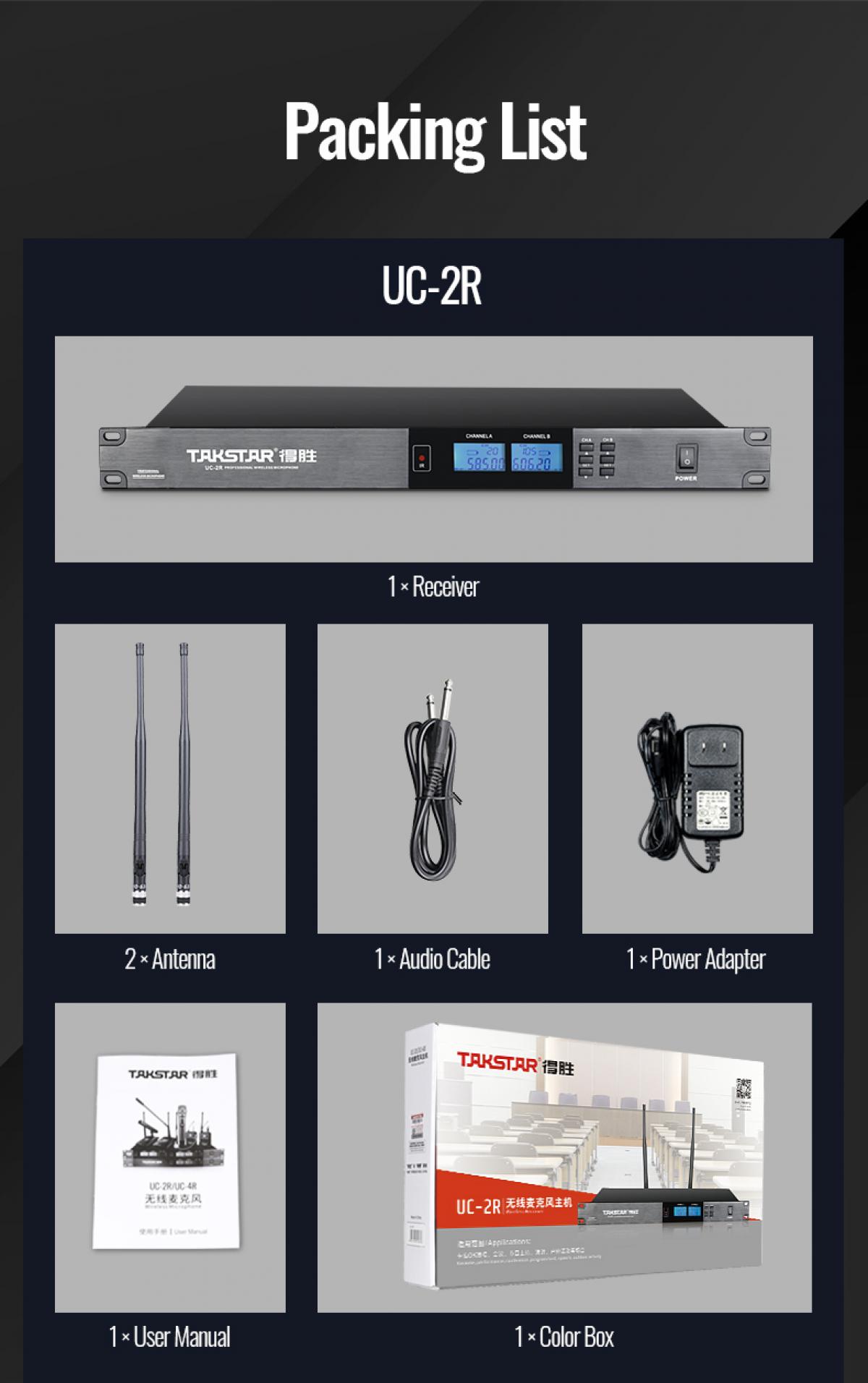

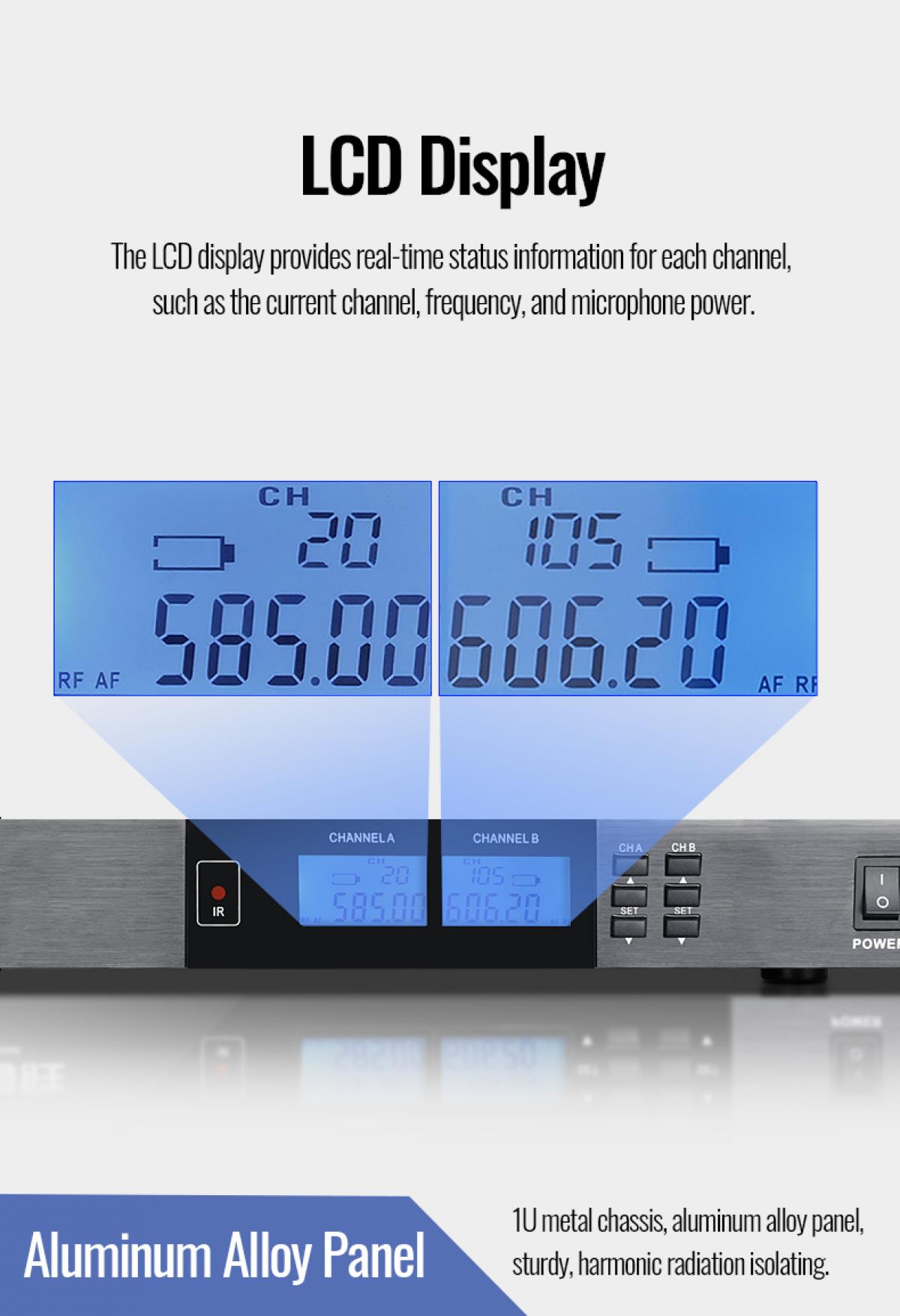

  4. Receiver (UC-2R/UC-4R)
  5. • Spurious Suppression: N50dB
  • Image Rejection: N50dB
  • Sensitivity: >25dBu (SIND=35dB)

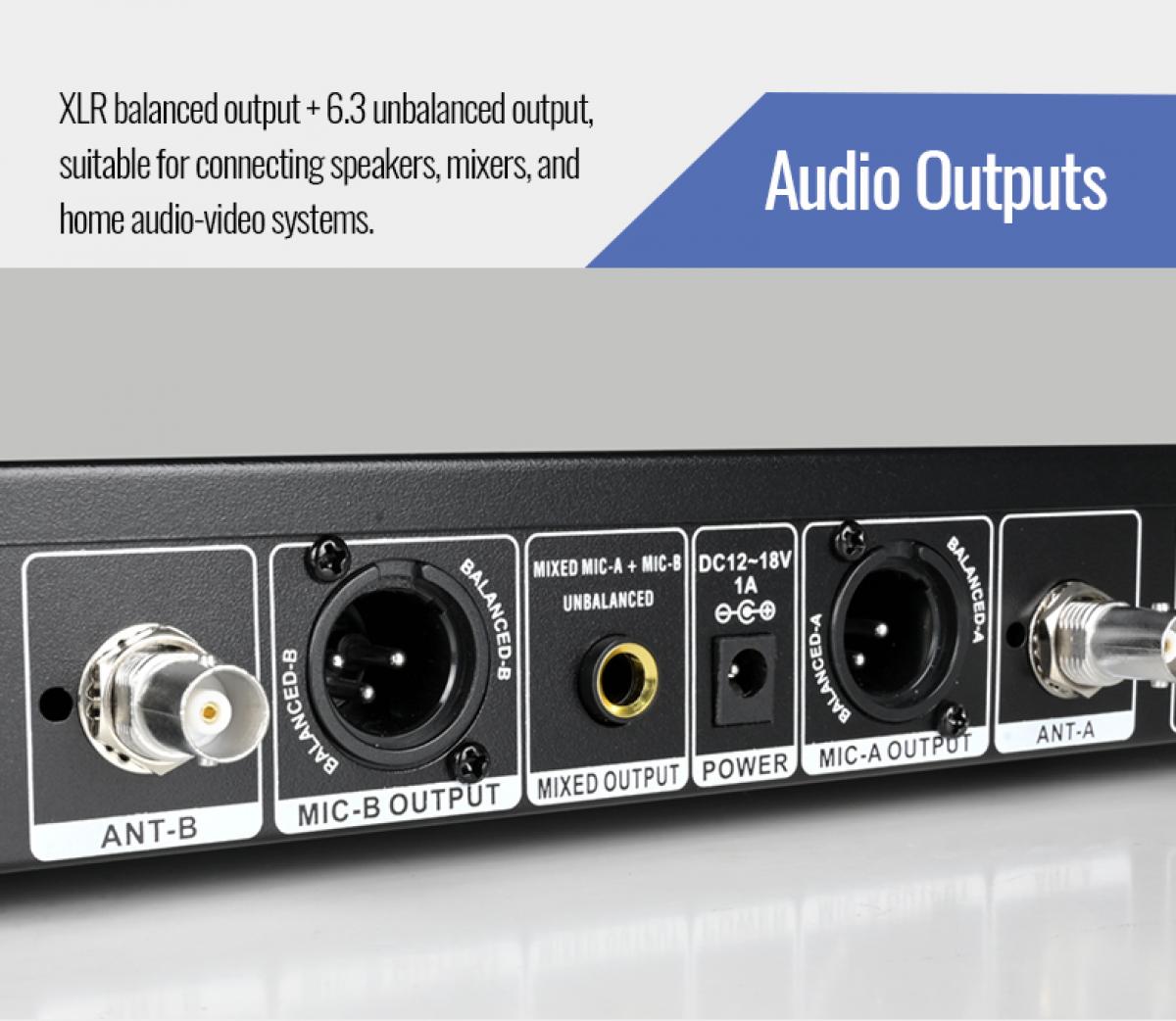

  • Audio Output Level: balanced output (XLR output jack): 250mV/600Q unbalanced output (1/4" output jack): 400mV/3KΩ
  • Working Voltage: DC 12V; Working Current: 350mA
  • Chassis Size: 480 (W) X 190 (D) X 45 (H) mm Transmitter (UC-TH1/UC-TH2/UC-TL/UC-TP/UC-TD)
  • RF Power Output: 30mW max
  • Oscillation Mode: PLL (digital frequency synthesizer)
  • Transmission Frequency Stability: <30ppm
  • Dynamic Range: ≥50dB(A)
  • Frequency Response: 80Hz-18KHz
  • Max Input SPL: 130dBSPL
  • Handheld Mic Capsule: dynamic

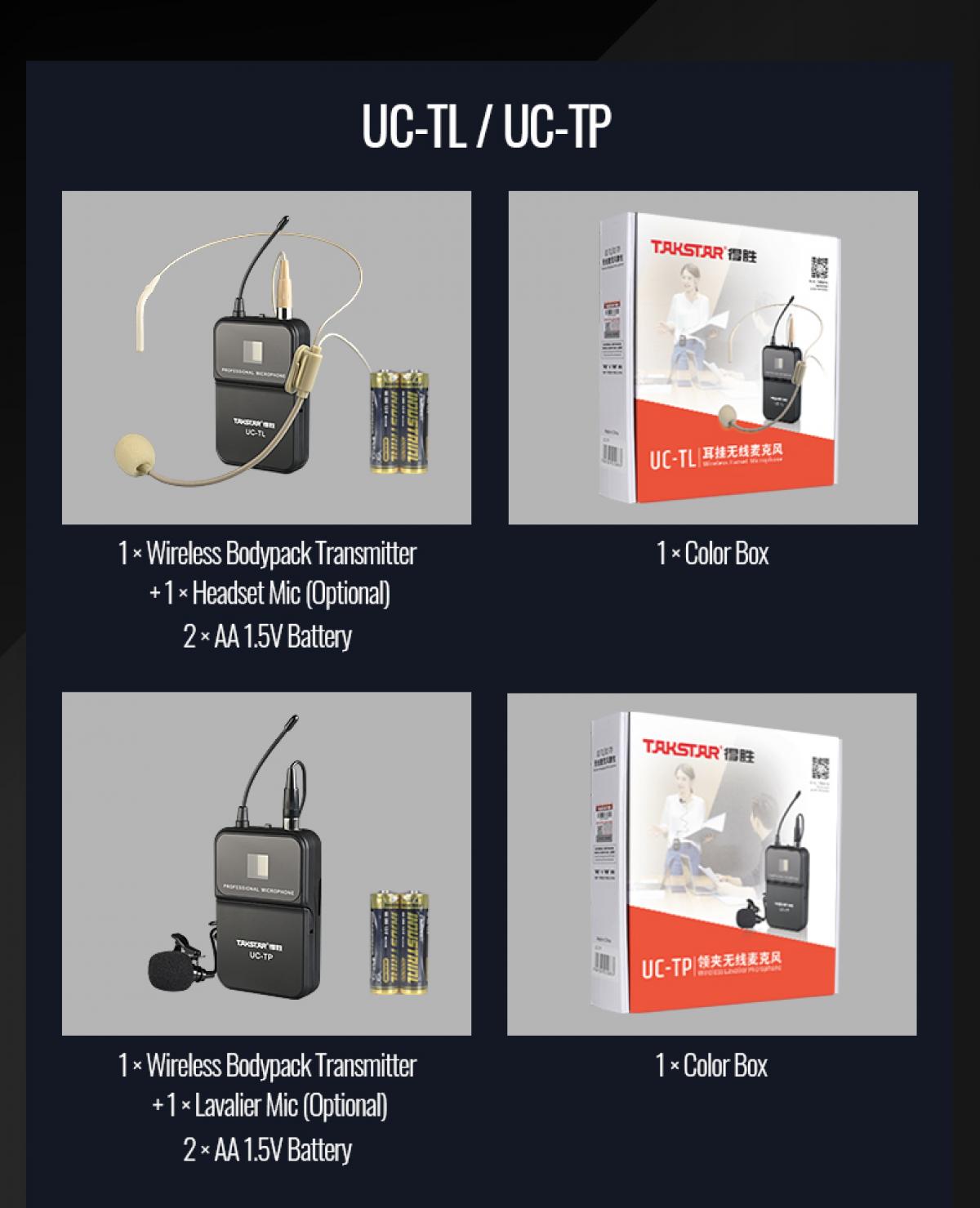

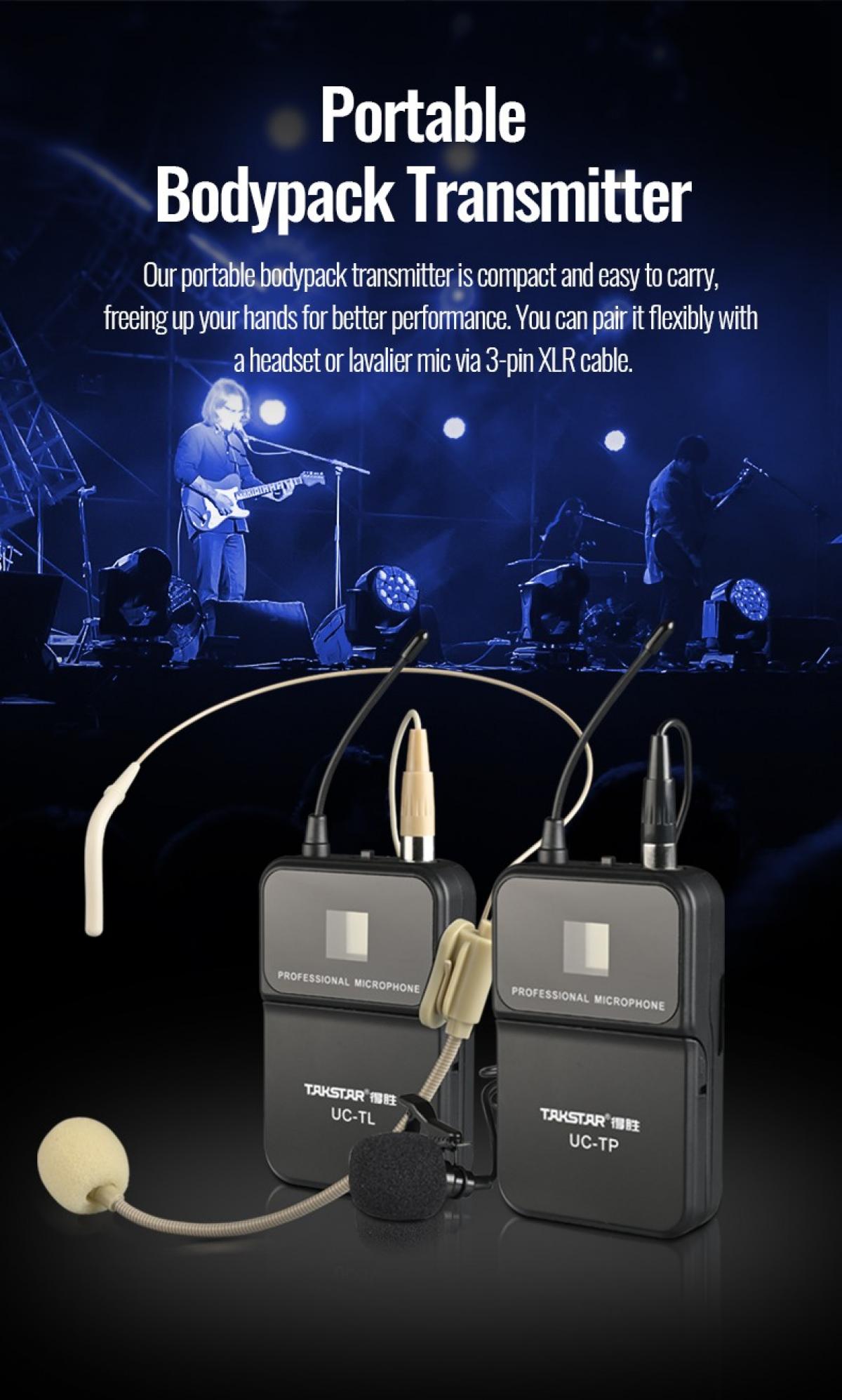

  • Bodypack/Conference Mic Capsule: condenser
  • Power Supply: 2PCS AA alkaline batteries (expected use time is about 8hrs)
Overall System Parameters
  • Frequency Range: 580-630MHz
  • Frequency Bandwidth: 60MHz
  • Modulation Method: FM
  • Max Frequency Deviation: ±45KHz
  • Frequency Response: 80Hz-18KHz
  • Signal-To-Noise Ratio (S/N): >50dB
  • Distortion 1kHz：<0.5%
  • Operating Temperature: TOP ~ 55°C
  • Working Distance: 100 meters (under ideal conditions)
  • Power Consumption: 8W
  • Static Power: 3W
Transmitter (UC-TH1/UC-TH2/UC-TL/UC-TP/UC-TD)
Note: The above data is measured by Takstar laboratory

КОД: 000176

930,000₮
