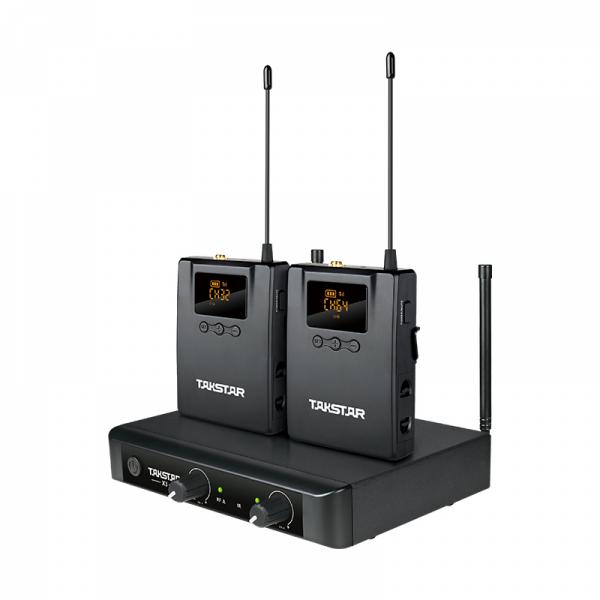

System Specification
- • Frequency Range：470～960MHz (frequency band design) Modulation： FM
- • Mute Control：pilot frequency ID code
- • Adjustable Range：20MHz
- • Frequency Band Qty：64
- • Frequency Band Interval：300KHz
- • Frequency Stability：±0.015%
- • Dynamic Range：≥90dB A+
- • Modulation Deviation：±48KHz
- • Frequency Response：80Hz～18KHz
- • S/N Ratio：≥95dB A+
- • Distortion：≤0.5%（at 1KHz)
- • Operation Temperature：-10℃～+40℃
- • Operation Range：50m (open area）

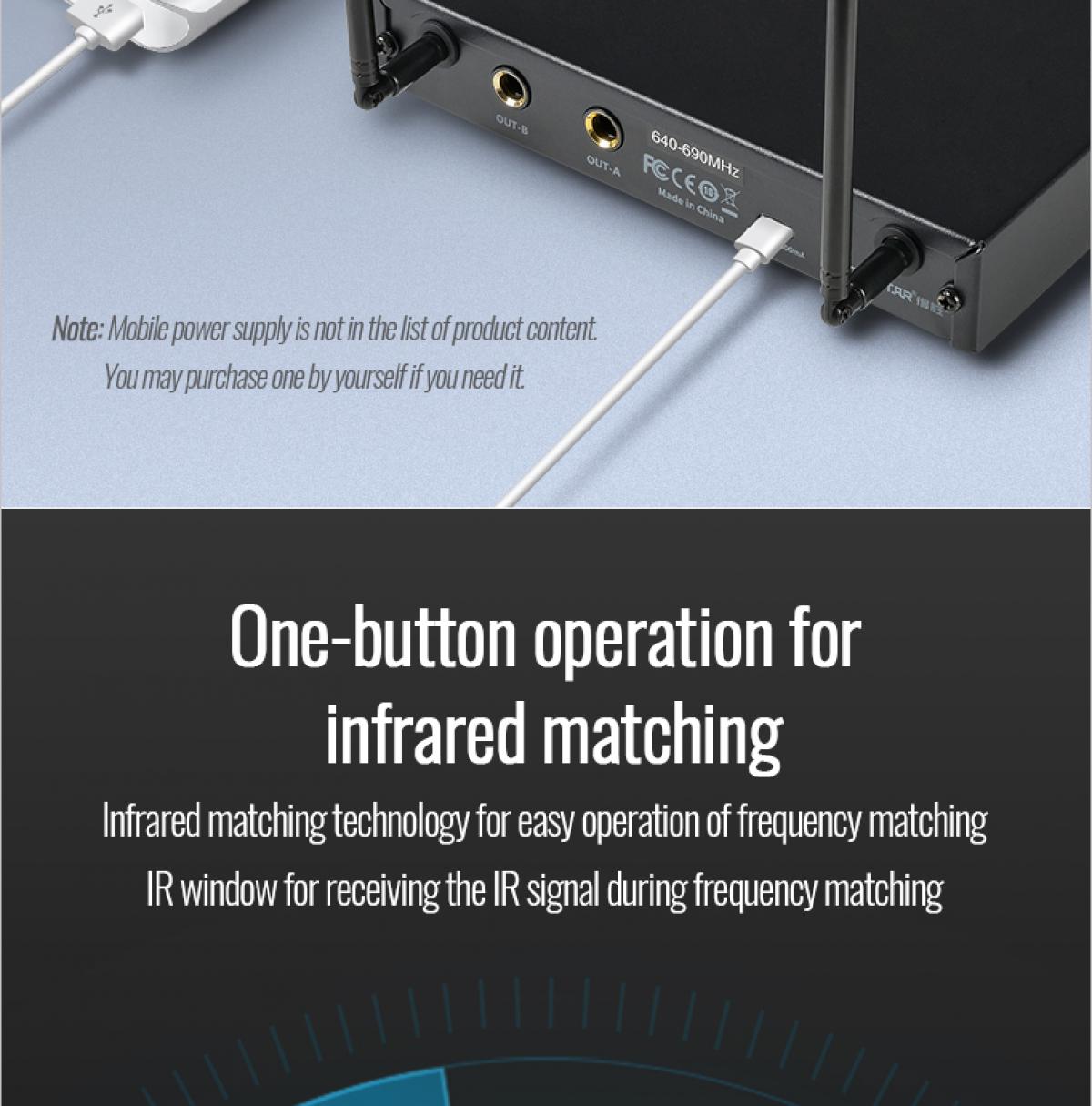

- • Power Supply：DC 5V 0.5A

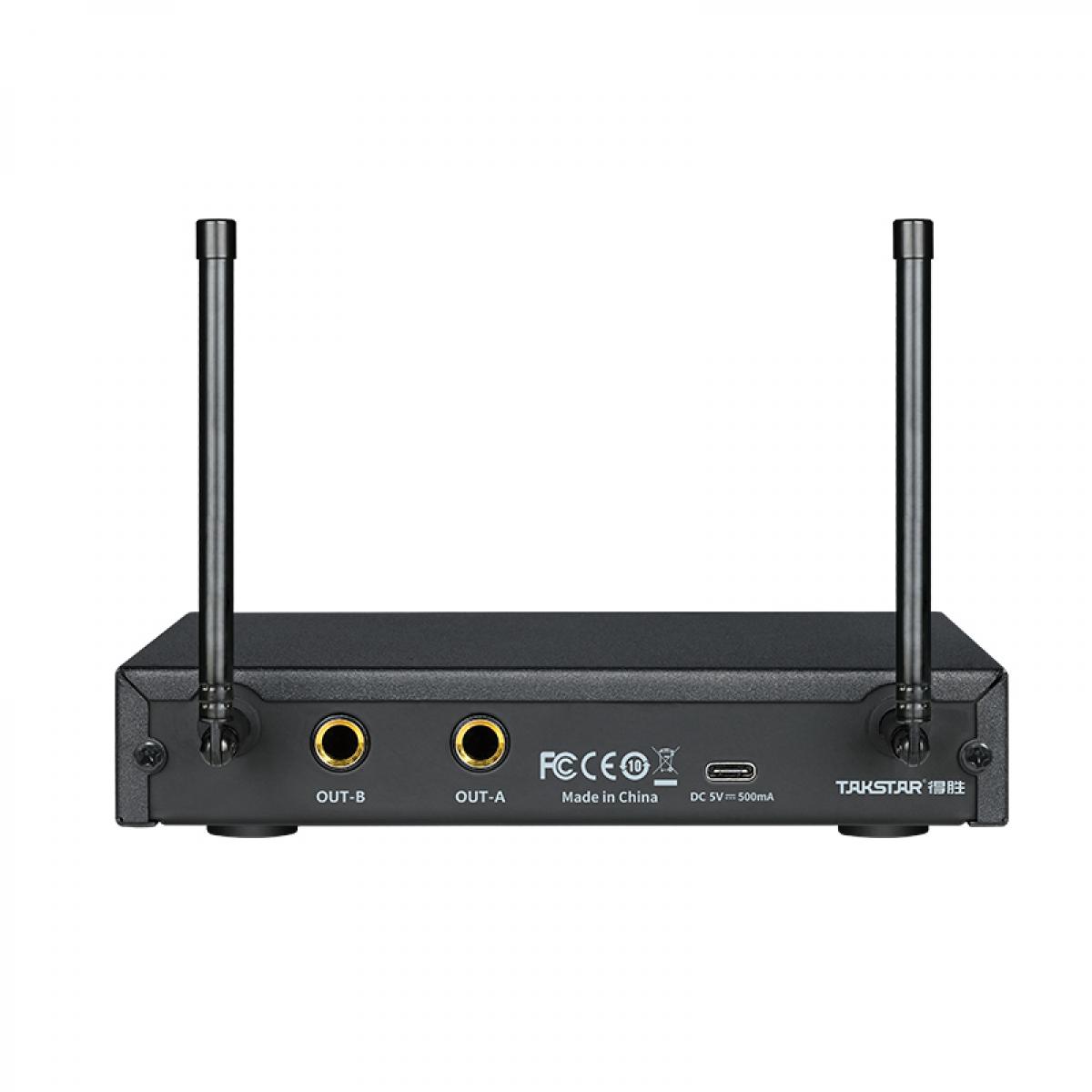

- • Audio Out: Independent bal XLR and unbal 6.3 combo
- • Sensitivity：≤-90 dBm (wiring test)
- • Audio Out Max Level：1.2V/RMS (at 1KHz THD=1%)
- • Dimension（LxWxH)：160X157X33mm
- • Weight： 475g

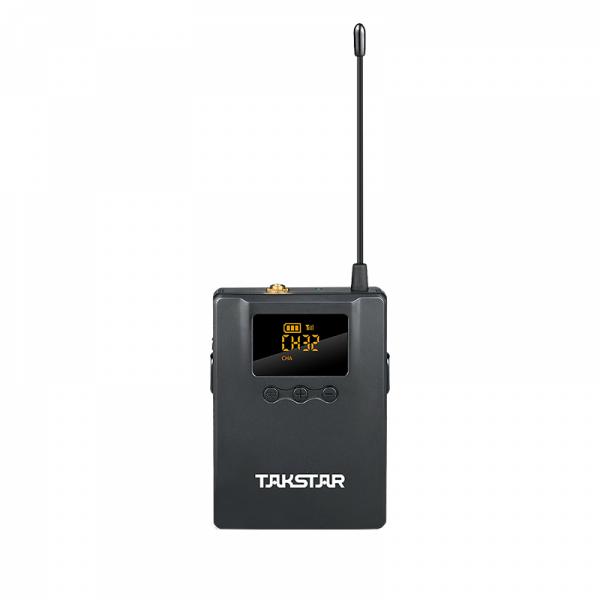

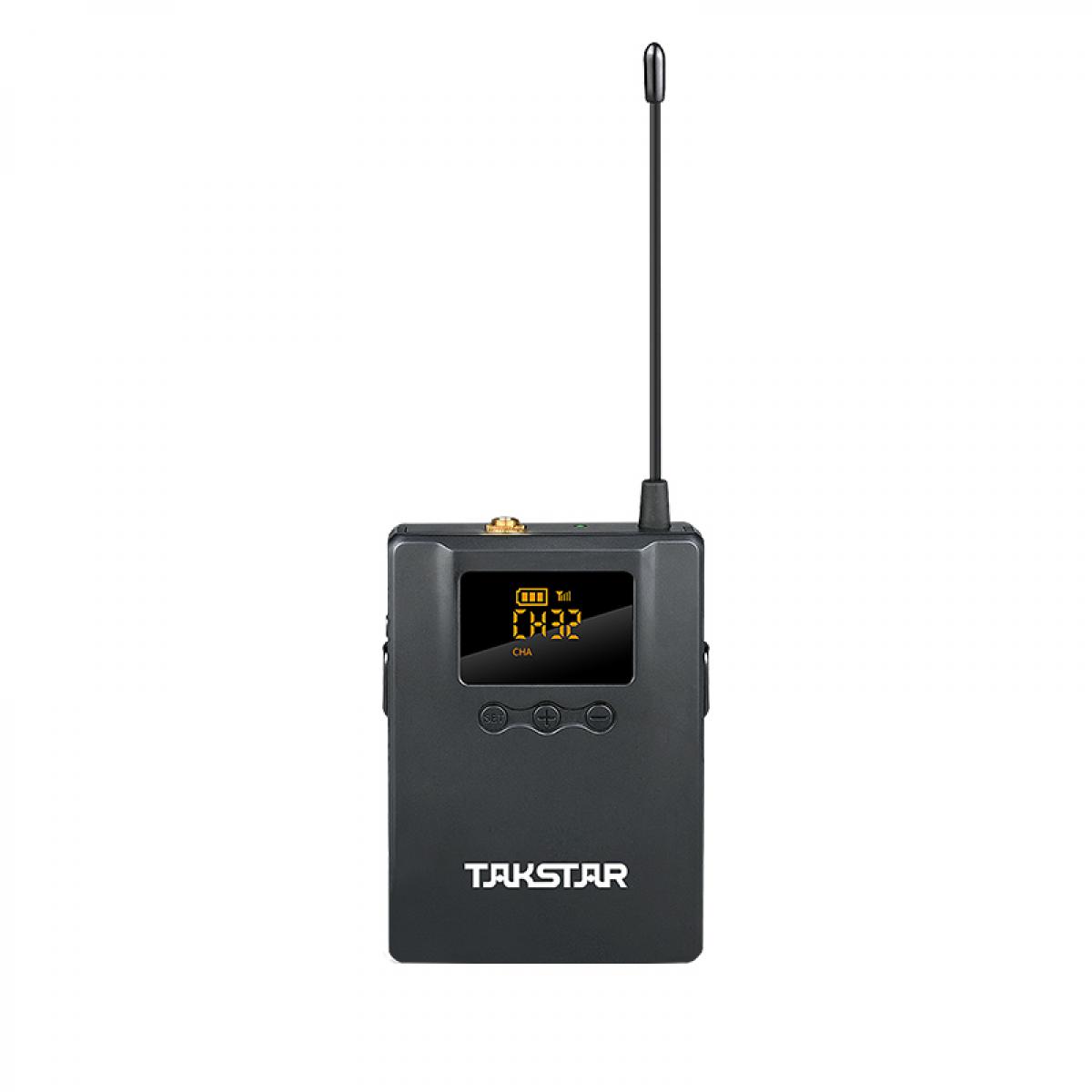

- • Output Power：≤10mW
- • Power Supply：two AA batteries
- • Operation Time：≥8h
- • Dimension（LxWxH)：100x64x24.5mm
- • Weight：80g
КОД: 000164
390,000₮
